Insignia NS-39L700A12 no function keine Funktion

The consumption is approx. 2,2W.
The Stby LED doesn´t light.
2,2W means, this device is neither off or on.

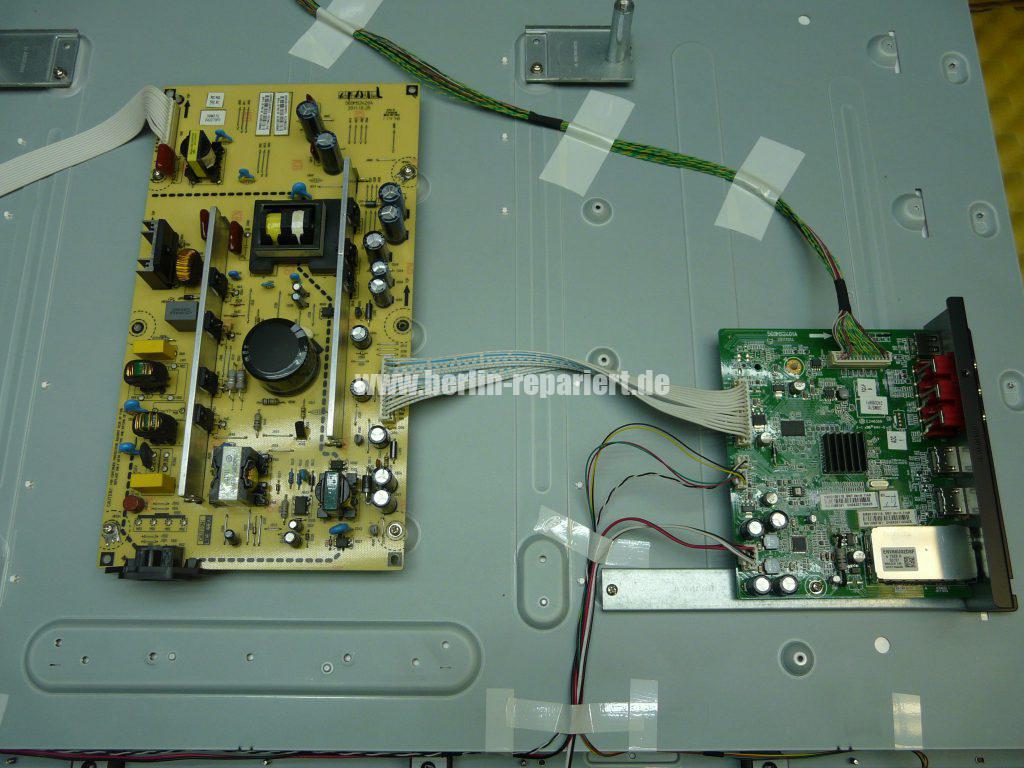

Check the power supply 5V and 3,3V on the main board, here OK.

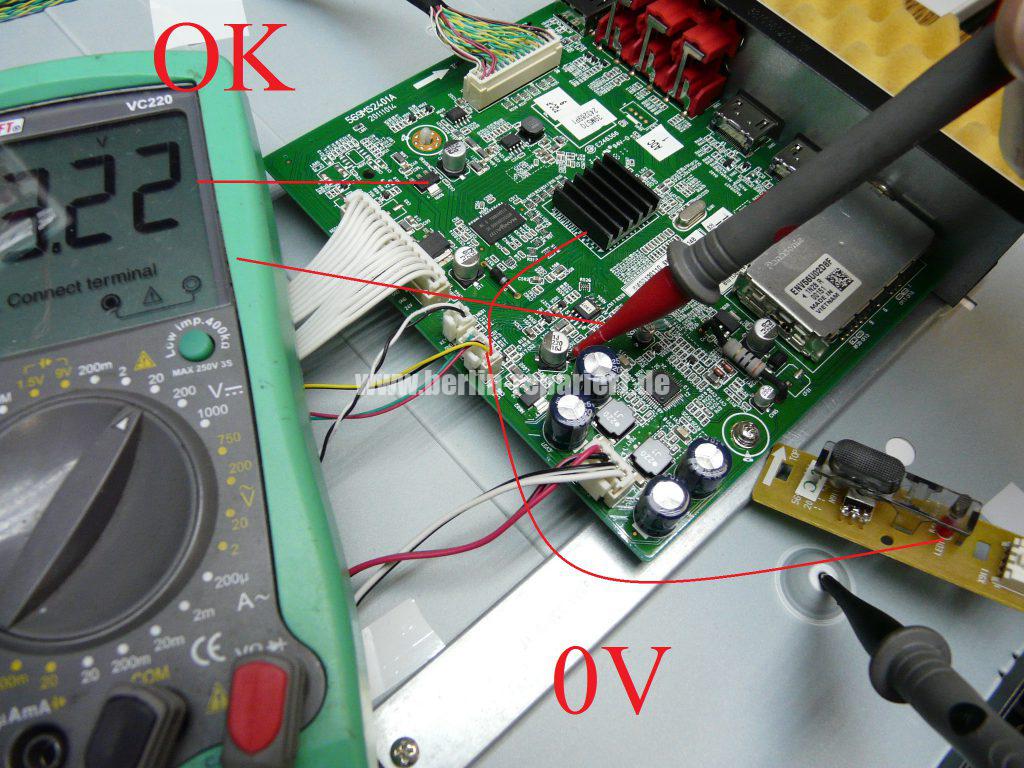

Check the LED voltage, on the yellow wires, here are 0V.
The quartz resonates, you can visualize with an oscilloscope.
Also an IR sensor are 0V.

The Stby LED and IR are connected to the microcontroller.
I think the microcontroller, have forgot his configuration.
Maybe the EEPROM, position N504, have a damage or needs a new flash.

I can not find information about this device.



Gerät: LCD-TV Insignia NS-39L700A12

Problem: keine Funktion

Maßnahme: Der Verbrauch liegt bei annähernd 2,2 Watt, die Standby-Lampe leuchtet nicht. 2,2 Watt bedeutet das Gerät ist weder an noch aus. Netzteil wurde geprüft, die 5 Volt und 3.3 Volt kommen am Mainboard an. Danach prüfe ich die gelben Leitungen der Stby LED, hier 0 Volt. Der Quarz-Resonator kann mit einem Oszilloskop geprüft werden bzw. visualisiert werden. Am IR-Sensor liegen 0 Volt an. Die Standby-Lampe und der IR-Empfänger sind an den Mikrokontroller angeschlossen. Ich denke der Mikrokontroller hat seine Konfiguration „vergessen“. Vielleicht hat der EEPROM (Position N504) einen Schaden oder braucht eine neue Programmierung.

Fazit: Ich kann keine Informationen über das Gerät finden.

Überarbeitet von Peter aus Niedersachsen
